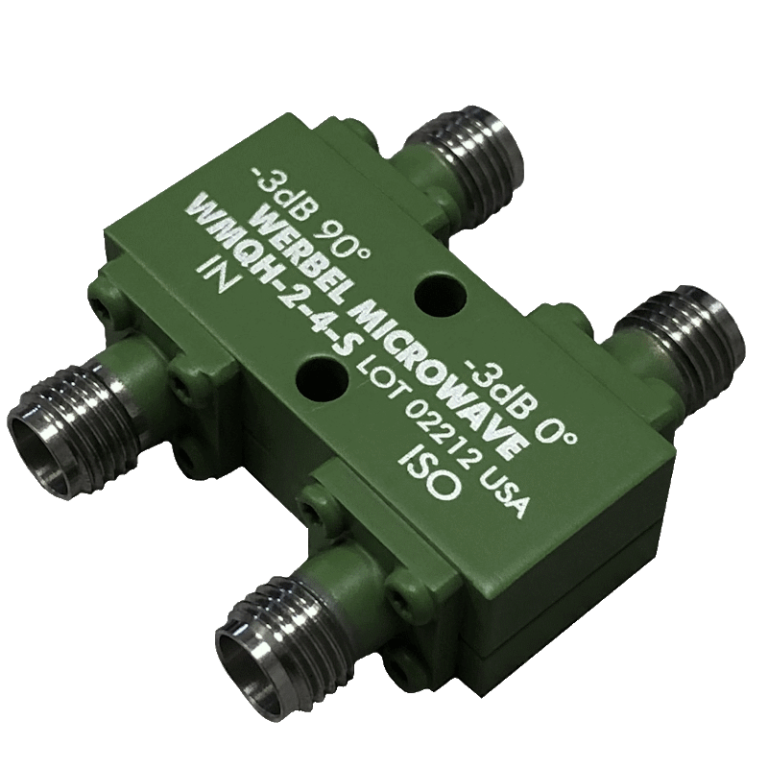

WMQH-2-4-S

Key Features • Octave band. • High isolation. • Excellent return loss. • Low unbalance. The 90-degree hybrid WMQH-2-4-S provides 3dB split with 90 degrees phase shift over the S band, in an aluminum enclosure measuring 1.15 x 0.50 x 0.38 inches with SMA connectors. The device is RoHS compliant but may be built using lead solder for military applications on special order. Return loss 24dB typical, isolation 23dB typical, phase balance 2.7 degrees typical. Werbel Microwave has designed this octave band quadrature hybrid with stripline technology. Parts are assembled and tested in the USA.
