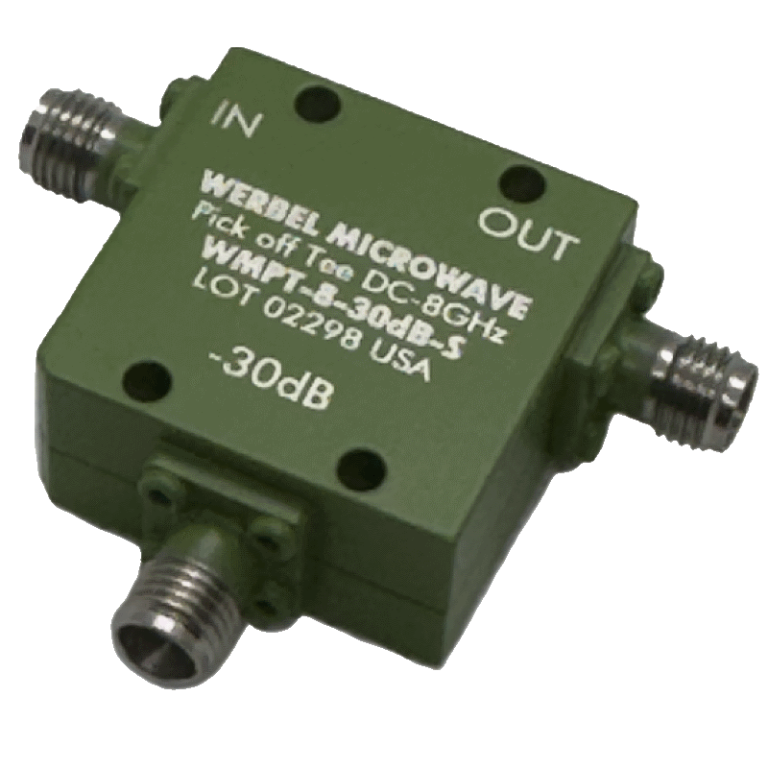

WMPT-8-30dB-S

WMPT-8-30dB-S is a special type of resistive coupler that operates from DC-8GHz with 30dB coupling factor. Typical insertion loss is 0.8dB at 8GHz, typical return loss is 21dB. Pick Off Tees, also called Resistive Taps, are unique devices that provide a very flat coupled response over a wide band, from very ow frequency to the GHz range. They are not directional devices meaning the input and output may be reversed. Assembled and tested in USA using RoHS compliant materials, although lead solder may be used on special order to support military applications.
