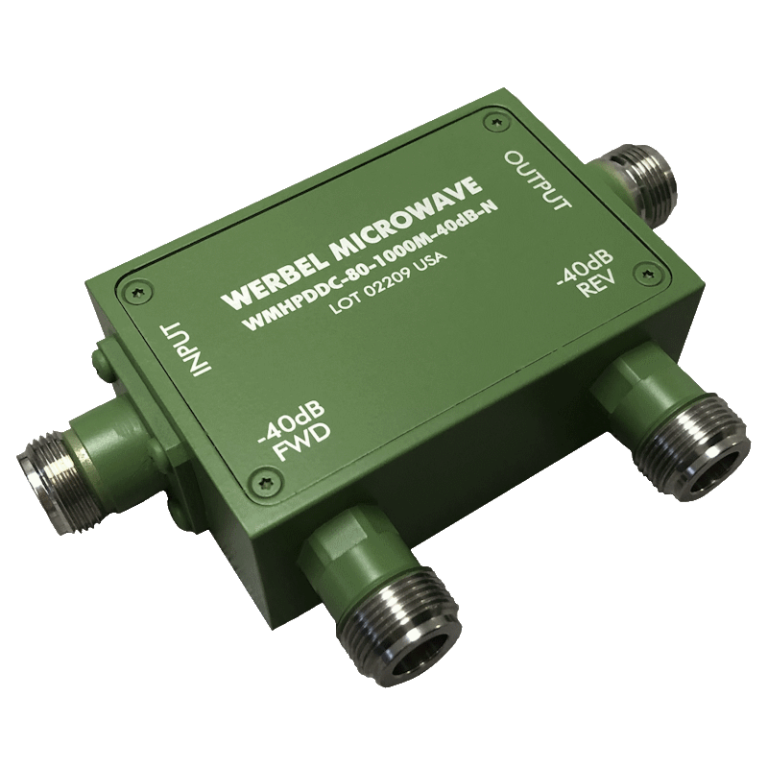

WMHPDDC-80-1000M-40dB-N-500W

Model WMHPDDC-80-1000M-40dB-N-500W from Werbel Microwave is a dual directional coupler that covers 80 MHz to 1 GHz. This catalog model features 40dB coupling factor in both forward and reverse directionals. The catalog model ships with N Female connectors at all ports. Custom configurations of dB values and connector types are available. Consult the factory with your requirements. The forward and reverse coupled outputs are independently isolated, which means that a mismatch on one coupled port will not affect the other. This is a useful characteristic in amplifier power monitoring applications where a good VSWR cannot always be guaranteed at the detector input.

This an improved version of the product that can handle 500 watts across the full band. It has been assigned a new model number to prevent confusion.
