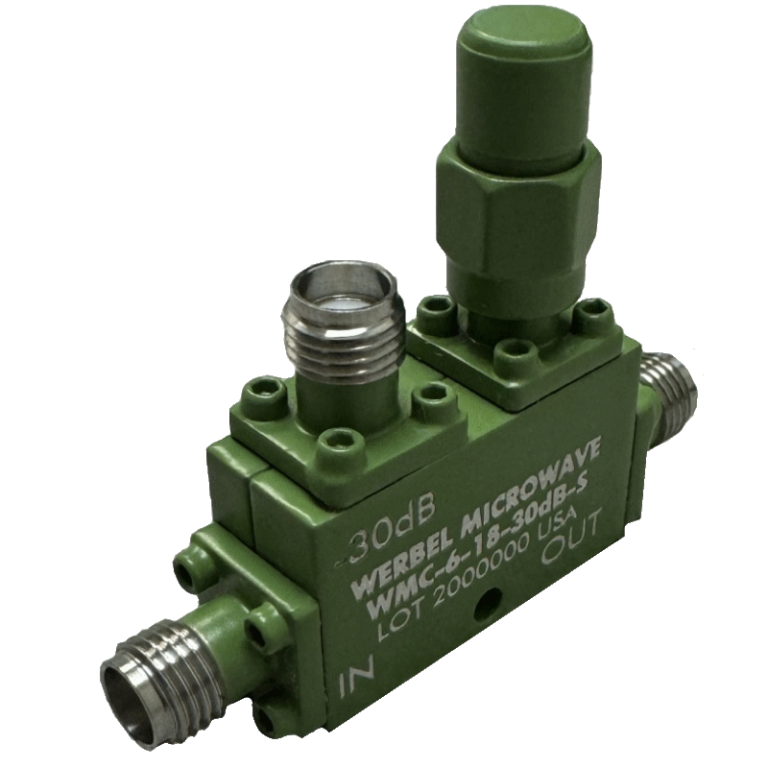

WMC-6-18-30dB-S

Model WMC-6-18-30dB-S from Werbel Microwave is a directional coupler that covers 6 to 18 GHz with broadband flat coupling response, high directivity, and excellent return loss performance. The high coupling value and short mainline minimizes lost power during the monitoring. Covers the upper half of C band, X band and Ku band in a single package measuring only 1.00 x 0.6 x 0.5 inches. Our unique design approach to couplers provides a maximally flat coupling response across the passband with minimal ripple, typically ±0.5dB or less. Directivity 14dB typical. Return loss 21dB typical. Insertion loss 0.4dB typical. Assembled and tested in USA using RoHS compliant materials, although lead solder may be used on special order to support military applications.
