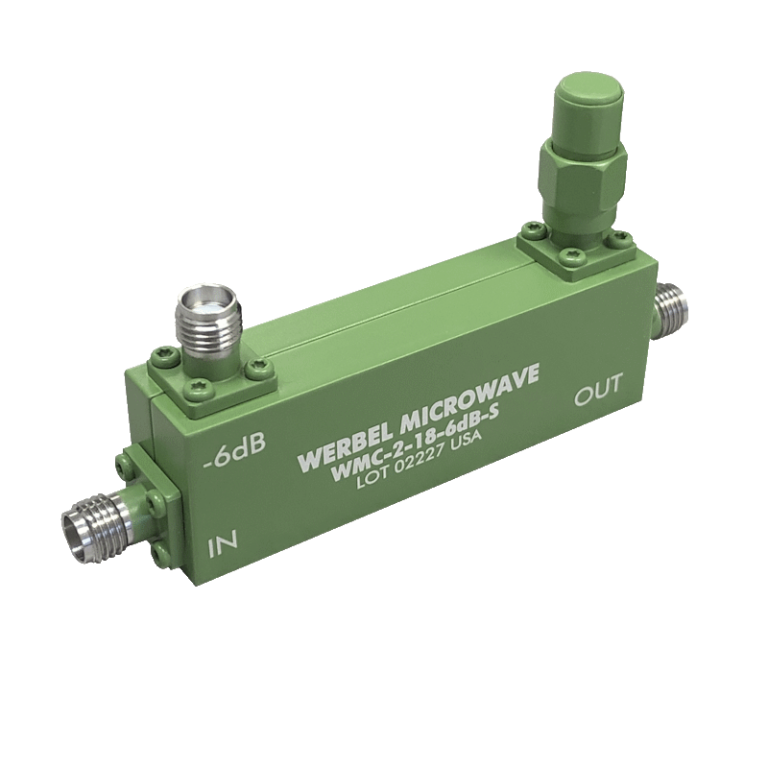

WMC-2-18-6dB-S

Model WMC-2-18-6dB-S from Werbel Microwave is a directional coupler that covers 2 to 18 GHz with broadband flat coupling response, high directivity, and excellent return loss performance. Frequency sensitivity, or coupling flatness, is very good, with ±0.9dB typical. Directivity 21dB typical. Return loss 17dB typical. The aluminum enclosure measures 2.25 x 0.73 x 0.50 inches with threaded mounting holes. SMA Female connectors. The device is RoHS complaint, but Sn/Pb solder is available for military applications on special build to order. The device covers the letter bands S, C, X and Ku band all in one enclosure. Our own unique coupling design allows for excellent flatness, thereby increasing measurement accuracy. Designed, assembled, and tested in the USA.
