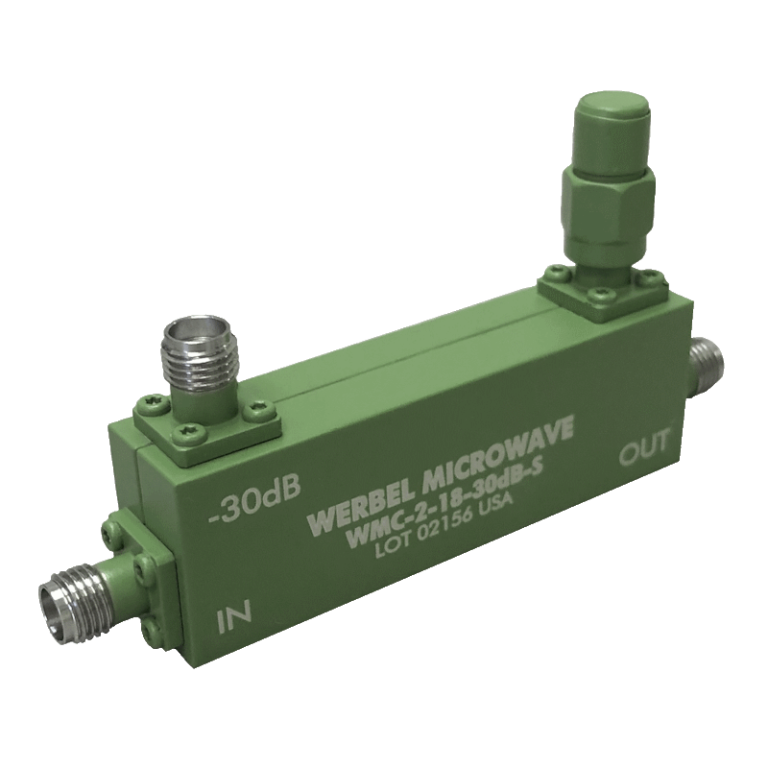

WMC-2-18-30dB-S

Model WMC-2-18-30dB-S from Werbel Microwave is a directional coupler that covers 2 to 18 GHz with broadband flat 30dB coupling response. Typical coupling flatness is ±0.55dB across the band, with typical directivity 17dB. Reflections are minimal with 19dB typ. main line return loss and 17dB typ. coupling return loss. 20 watts input power. Our unique design approach to coupling line results in a very flat, stable coupling response over the frequency range. The S, C, X and Ku bands are covered in one device with high coupling factor with minimal insertion loss. Designed, assembled and tested in USA.
