WM8PD-0.5-6-S

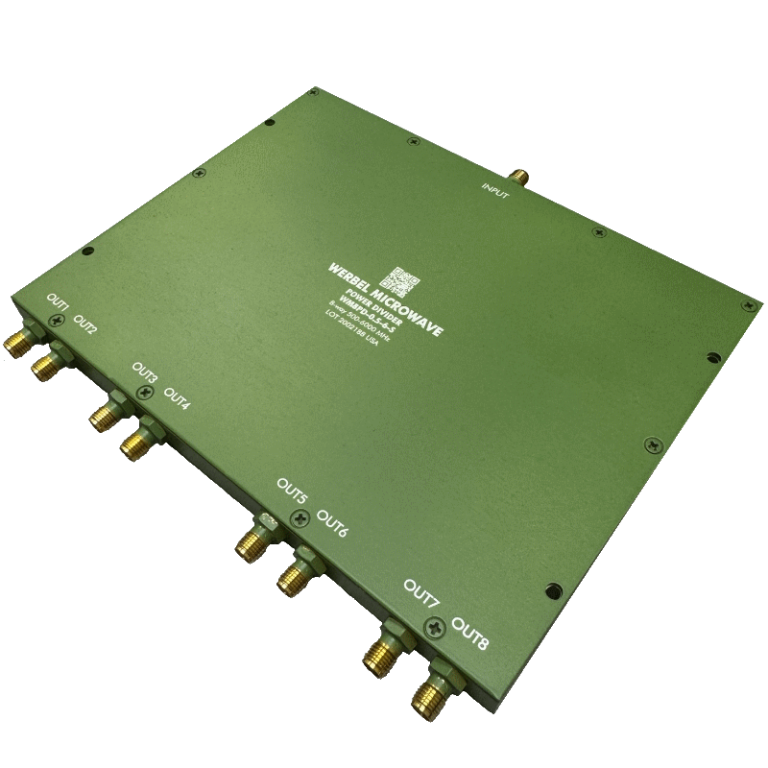

WM8PD-0.5-6-S is an 8-way in-line power splitter covering the continuous bandwidth of 500 MHz to 6 GHz in an enclosure measuring 6.50 x 4.97 x 0.55 inches with versatile mounting options. The device is RoHS compliant. Wide spacing between the output pairs of connectors allows for ease of the technician to access connection points using a torque wrench. Consequently, the device saves space in rack mounting applications. Return loss 16dB typical. Insertion loss 1.0dB typical. Isolation 20dB typical. Amplitude balance 0.4dB typical. Phase balance 6 degrees typically. Designed, assembled and produced in USA.
