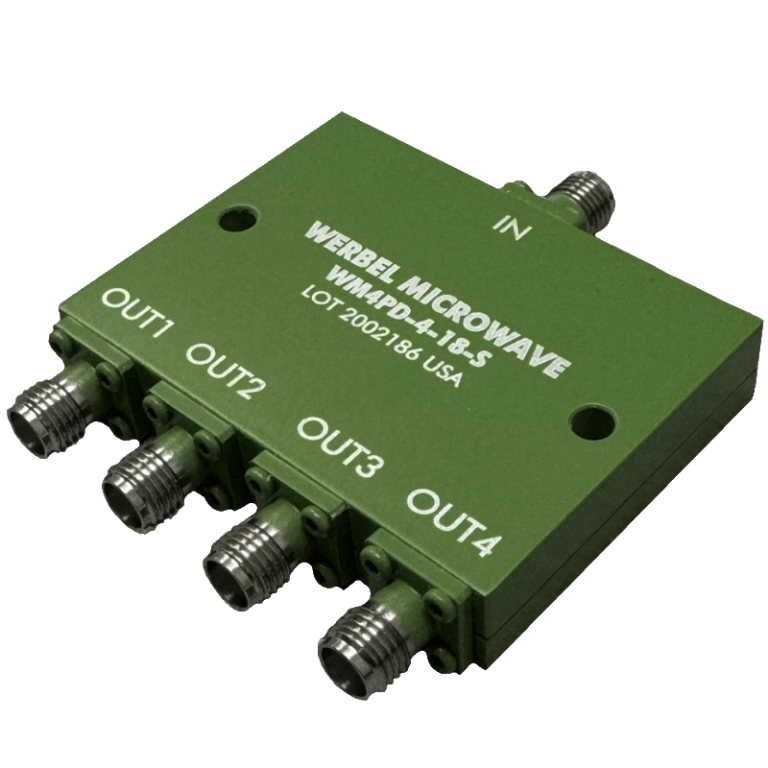

WM4PD-4-18-S

WM4PD-4-18-S is a 4-way in-line power splitter covering the continuous bandwidth of 4 to 18 GHz in a compact enclosure measuring 1.98 x 1.46 x 0.38 inches. The device is RoHS compliant. There exist two through mounting holes for top-down bolting to a chassis. The SMA female connectors are stainless steel for durability and ruggedness. Typical insertion loss is only 0.7dB. Isolation 21dB typical between output ports. Werbel Microwave’s unique design approach results in a compact device covering C band, X band and Ku band with very low insertion loss. In production since 2016. Designed, assembled, and tested in the USA.
